Connect Kordiam with MS Active Directory (ADFS)

You can connect your editorial calendar Kordiam with MS Active Directory.

How to Set Up Single Sign-On with ADFS for Kordiam?

Pre-Conditions

• Your company needs to be both an ADFS user as well as a Kordiam customer.
• Your Kordiam subscription must include access to the SAML security features. You get access to these features by purchasing the Support & Security Package. If you are a large enterprise customer this will likely be included in your package.
  As a result you need to be eligible to access the Security page in Kordiam.
  Please contact Kordiam Sales if you are interested in this feature, but don't have access to it.

Setting up the Connection

Follow these steps in ADFS:

• Create a new Relying Party Trust with
  • Federation metadata addresses: https://kordiam-saml.s3.eu-central-1.amazonaws.com/kordiam.app.xml
  • Display name (e.g. "Kordiam")

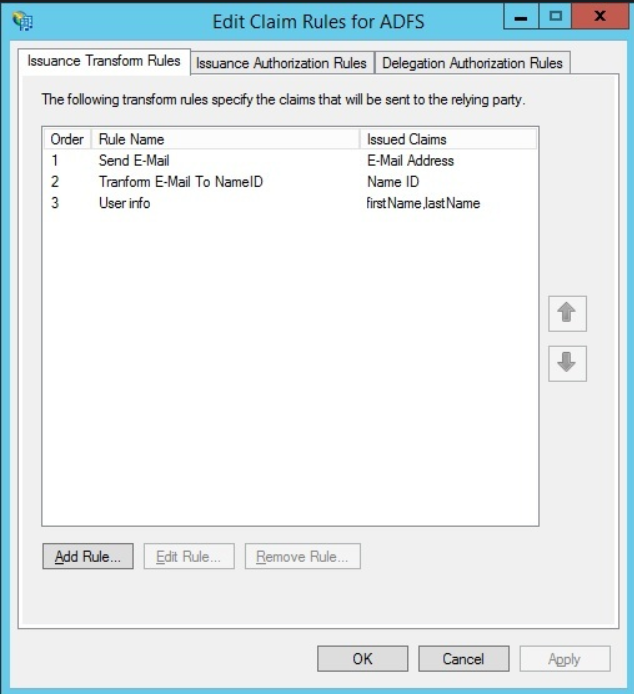

  • Claim rule name (images below):

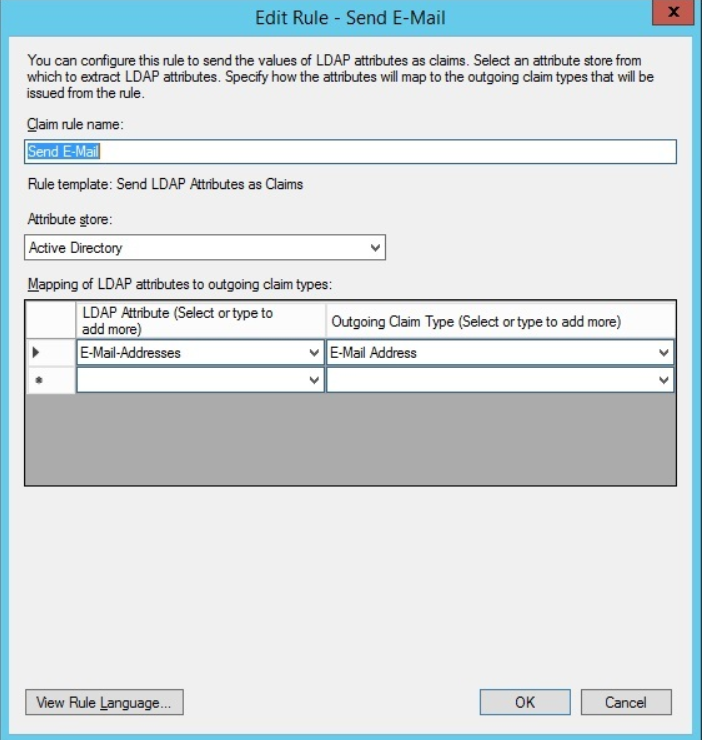

    • 1. Send E-Mail (E-Mail Address),

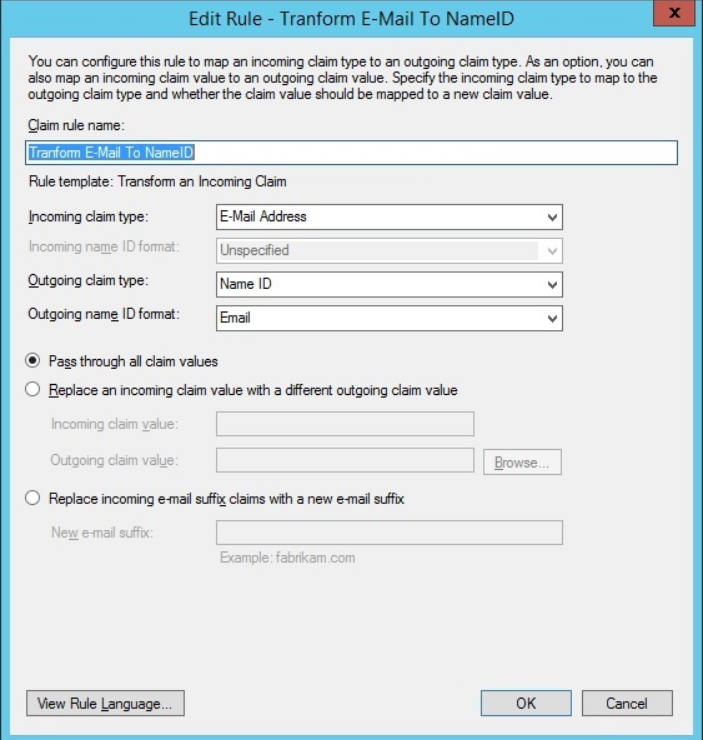

    • 2. Transform E-Mail to Name ID (Name ID),
    • 3. User info (first Name, last Name)

• Copy the metadata URL for use in Kordiam

Once you have done this in ADFS setting it up in Kordiam is easy:

• Access the Security page in Kordiam
• In the ADFS section enter the following data from your company's ADFS account:
  • Domain name (e.g. "acme-publishing.com"). It must be unique to avoid duplication.
  • Metadata URL
• Test the connection by clicking on Test Connection
• Click Save at the bottom of the page and you are all done.

Before first login: please check Time Synchronization with a public Time Synchronization Server (for example, provided by Microsoft) on the domain controller server with the command line w32tm /config /syncfromflags:manual /manualpeerlist:time.windows.com /update to avoid large time shifts!

How Users Can Use the Single Sign-On

For the first login after the ADFS connection has been set up users access Kordiam via the usual login page.

On that page they find a button Login With ADFS. They are then prompted to enter the domain name that was specified for ADFS on the Security Settings page of the Kordiam account.

Errors

Please check the special page with a list of potential SAML error messages.
